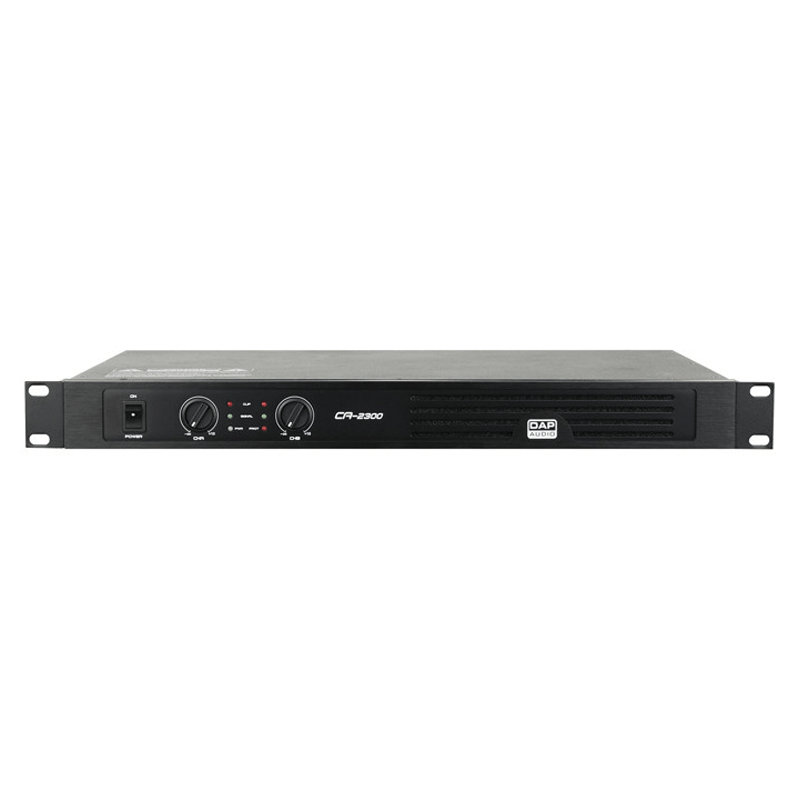

Dap Audio CA 2300 D4513

Amplificatore Di Potenza 2 Canali

‎Il DAP CA-2300 è un amplificatore 2x 300 watt per un'installazione compatta da 19 pollici con un'altezza di 1 unità. Dotato di tecnologia di classe D e SMPS, il CA-2300 ha tutte le funzionalità necessarie per l'utente di oggi.‎

Specifiche Tecniche

• 2 Ohms Stable: Yes
• Output per channel into 8 ohms at 1 kHz: 180 W
• Output per channel into 4 ohm at 1 kHz: 300 W
• Bridge Output into 8 ohms at 1 kHz: 525 W
• Bridge Output into 4 ohms at 1 kHz: 600 W
• Output per channel into 8 ohm at 20 Hz > 20 kHz: 180 W
• Output per channel into 4 ohm at 20 Hz > 20 kHz: 300 W
• Bridge Output 8 ohm on 20 Hz > 20 kHz: 525 W
• Bridge Output 4 ohm on 20 Hz > 20 kHz: 600 W
• Output Channels: 2
• Output Gain: 30 dB
• Output Mode: Bridge, Stereo
• Output Connector: Speaker Connector 4 pole , TS unbalanced 6.3 mm
• Mono Inputs: 2
• Mono Input Connector: 3-pin XLR, TRS balanced 6.3 mm
• Mono Input Impedance: 20000 Ω
• Mono Unbalanced Input Sensitivity: 1 dBv
• THD Level: < 0.1%
• Signal-to-noise Ratio: > 98 dB
• SLEW Rate: 20 V/μs
• Amp Technology: Class D
• Damping Factor: 180 :1
• Crosstalk: 70 dBu
• Frequency Response Minimum: 20 Hz
• Frequency Response Maximum: 20000 Hz
• Dynamics Type: Limiter
• Power Supply: 220V-240 VAC 50 Hz
• SMPS Included: Yes
• Power Consumption: 595 W
• Fuse: 5 A
• Power Connector in: IEC
• Amplifier Airflow: Front to back
• Amplifier Cooling: Radial Fan
• Dimensions: Height 44 mm, Width 484 mm, Length 281 mm
• Installation Depth (excl. connector): 281 mm
• Flightcase Size: 19"
• Rack Units: 1 U
• Housing: Metal
• Colour: Black
• Finish: Powder Coating
• Weight: 4.7 kg
• IP Rating: IP20 (indoor use only)
• Handles: No
• Electronic Protection: Clip limiter (fixed), DC voltage, Overheat, Overload, Short circuit, Softstart, Thermal
• LED Indicators: Clip, Power, Protect, Signal
• Included Cables: IEC cable
• Included Accessories: User Manual
