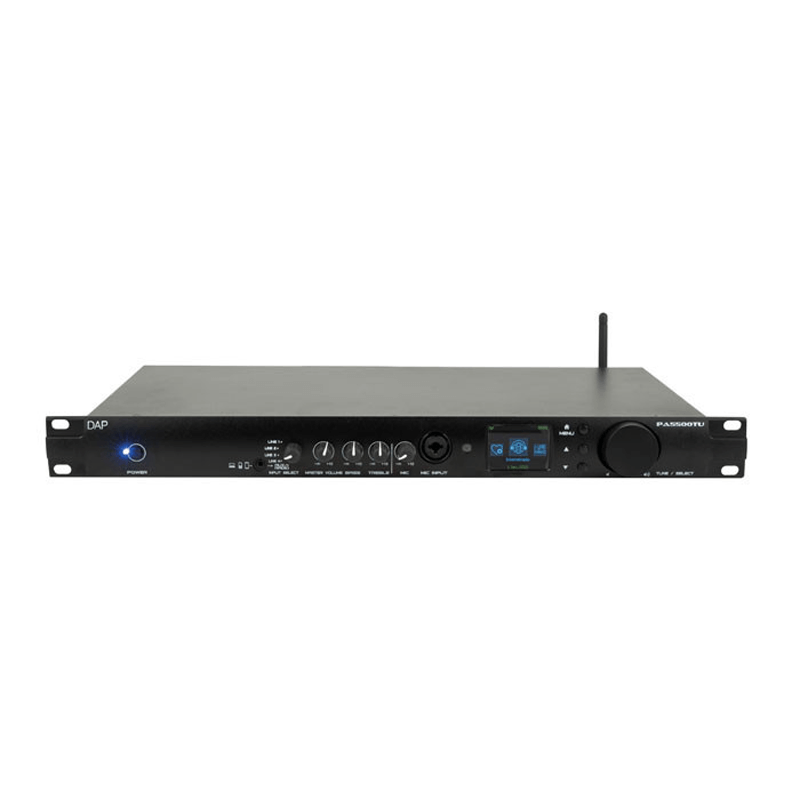

Dap-Audio PA-5500TU

Amplificatore

‎Il DAP PA-5500TU è un amplificatore da 500 W/100 V e un lettore multimediale adatto per essere collocato in un'unità rack 1U da 19 pollici. Supporta più sorgenti multimediali (wireless), come DAB +, radio FM, AUX in / out e Bluetooth. Dotato di un telecomando IR, è possibile impostare facilmente il volume, le impostazioni EQ, l'allarme eccetera di questo amplificatore di classe D di alta qualità.‎

Specifiche Tecniche

• RMS Output Power Amplifier: 460 W
• Output per channel into 8 ohms at 1 kHz: 240 W
• Bridge Output 100V: 260 W
• Output Channels: 2
• Output Mode: Bridge, Stereo
• Output Impedance: 4 Ω
• Output Connector: Terminal
• Stereo Inputs: 4
• Stereo Input Connector: RCA
• Transformer: 100 V
• Supported Audio Files: AAC/AAC+ , FLAC, MP3
• THD Level: < 0.1%
• Signal-to-noise Ratio: > 100 dB
• Amp Technology: Class D
• Frequency Response Minimum: 20 Hz
• Frequency Response Maximum: 20000 Hz
• Parametric Main Equalizer: 2 Bands
• Wireless FM Frequency Start: 87 MHz
• FM Frequency End: 108 MHz
• FM Antenna Impedance: 75 Ω
• DAB+ Frequency Start: 174.928 Mhz
• DAB+ Frequency End: 239.2 Mhz
• Display: TFT
• Display Size: 2.4 "
• Power Supply: 220V-240 VAC 50 Hz
• SMPS Included: Yes
• Power Consumption: 96 W
• Power Connector in: IEC
• Dimensions: Height 44 mm - Width 483 mm - Length 330 mm
• Rack Units: 1 U
• Material: Metal
• Housing: Metal
• Colour: Black
• Finish: Powder Coating
• Weight: 3.2 kg
• IP Rating: IP20 (indoor use only)
• Amplifier Airflow: Front to back
• Amplifier Cooling: Radial Fan
• Electronic Protection: Overload, Short circuit
• LED Indicators: Power
• Maximum Ambient Temperature: 40 °C
• Included Cables: IEC cable
• Included Accessories: FM Antenna, User Manual, WiFi antenna
• Included Remotes: IR Remote
