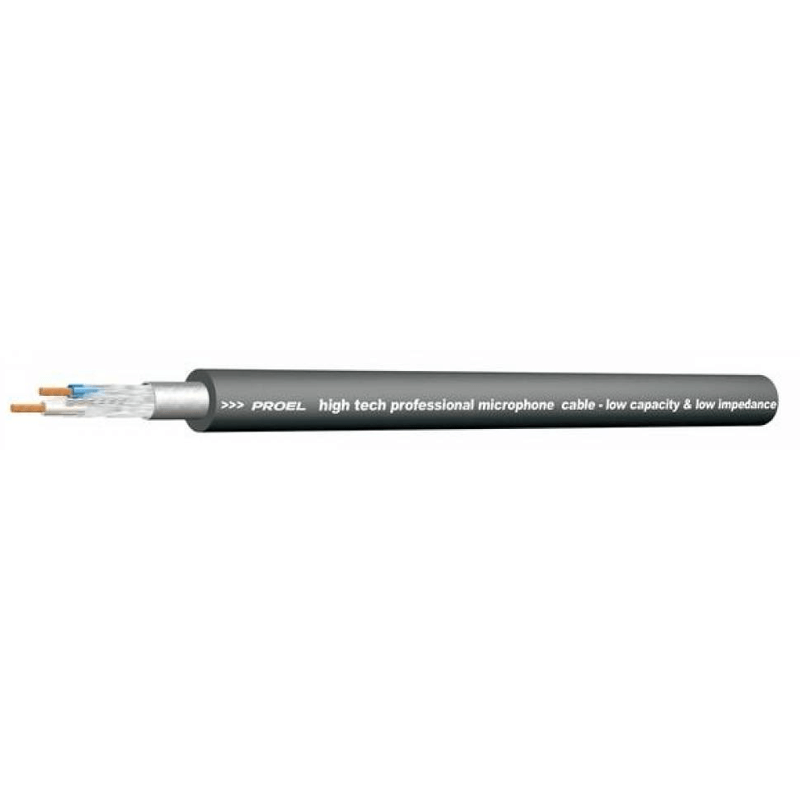

Proel HPC250

Cavo Bilanciato A Metro

Cavo bilanciato “high quality” per microfono con guaina esterna flessibile - O.F.C. (Oxygen Free Copper - Sezione 2 x 0,22 mm2).

Specifiche Tecniche

• Application fields: Installations / Recording studios / Microphone connections
• Conductors: Tinned copper 24 AWG = 7 x 0.20 mm (0.22 mm2)
• Insulation: PE Ø 1.36 mm
• Shield: Tinned copper braid 6x16x0.10 mm > 95%
• Jacket: Flexible PVC 60 shore Ø 6.50 mm
• Drain wire: Tinned copper 24 AWG = 7 x 0.15 mm (0.22 mm2)
• Color: Black
• Electrical resistance: 93 Ohm/Km (conductor) @ 20°C - 21 Ohm/Km (shield) @ 20°C
• Electrical capacitance: 90 pF/m (conductor/conductor) @ 1 KHz
• Velocity of propagation: 80 %
• Operating temperature: -20°C / +70°C
• Working tension: < 50 V AC - < 75 V DC
• Weight: 51 Kg
• Minumum bending radius: 20 x cable section radius
• Packaging: 100 m carton reel
