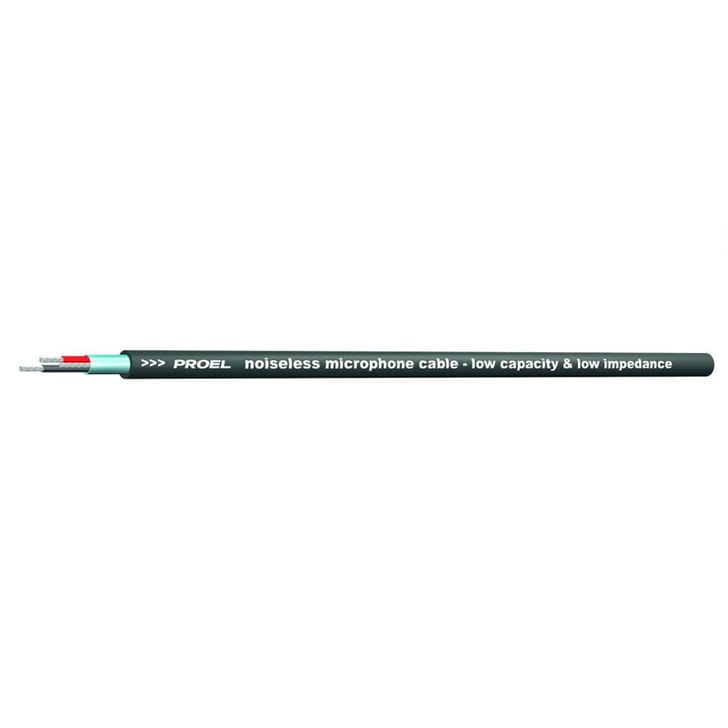

Proel HPC80

Cavo Microfonico Bilanciato A Metro

Cavo bilanciato per installazione con guaina esterna schermata con nastro in alluminio. O.F.C. (Oxygen Free Copper) dal diametro ridotto con sezione 2 x 0.22 mm2.

Specifiche Tecniche

• Application fields: Patch-bay connections / Multieffect connections / Rack system connections
• Conductors: Tinned copper - 24 AWG 7 x 0.20 mm (0.22 mm2)
• Insulation: PE Ø 1.05 mm
• Shield: Aluminium foil 100%%
• Jacket: Flexible PVC 80 shore Ø 4.00 mm
• Color: Black
• Drain wire: Tinned copper 24 AWG 7 x 0.20 mm (0.22 mm2)
• Electrical resistance: 87 Ohm/Km (conductor) @ 20°C
• Electrical capacitance: 63 pF/m (conductor/conductor) @ 1 KHz - 107 pF/m (conductor/shield) @ 1 KHz
• Nominal impedance: 80 +-3 Ohm
• Attenuation: 1 MHz = 2.10 dB/100 m - 3 MHz = 3.60 dB/100 m - 6 MHz = 5.00 dB/100 m - 8 MHz = 5.80 dB/100 m - 10 MHz = 6.50 dB/100 m
• Velocity of propagation: 66 %
• Operating temperature: -20°C / +80°C
• Working tension: < 50 V AC - < 75 V DC
• Weight: 20 Kg/Km
• Minumum bending radius: 25 mm
• Packaging: 100 m carton reel
