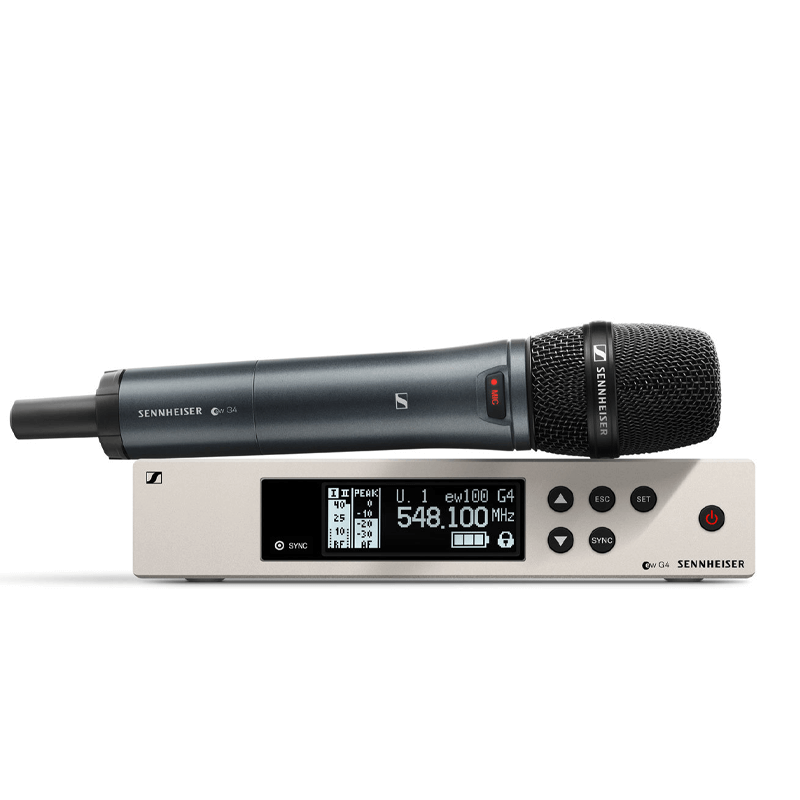

Sennheiser EW 100 G4-835.S A1

Radiomicrofono Wireless A Gelato

‎Ora ancora più semplice, flessibile e affidabile: la serie 100 è diventata la prima scelta sia per i sound designer che per gli utenti occasionali grazie al suo semplice concetto di funzionamento e perché il sistema non scende a compromessi in termini di suono dal vivo.‎

Specifiche Tecniche

EM 100 G4:

• Frequency range: A1: 470 - 516 MHz
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9 %
• Audio output: 6.3 mm jack socket (unbalanced): +12 dBu  XLR socket (balanced): +18 dBu
• Signal-to-noise ratio: ≥ 110 dBA
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Modulation: Wideband FM
• Power supply: 12 V DC
• Antenna connector: 2 BNC sockets
• Current consumption: 300 mA
• Adjacent channel rejection: Typically ≥ 65 dB
• Intermodulation attenuation: Typically ≥ 65 dB
• Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• RF sensitivity: < 2.5 μV for 52 dBA eff S/N
• Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBμV
• Equalizer: Preset 1: Flat - Preset 2: Low Cut (-3 dB at 180 Hz) - Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) - Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: True diversity
• Blocking: ≥ 70 dB
• Dimensions Approx. 190 x 212 x 43 mm
• Weight: Approx. 980 g

SKM 100 G4-S:

• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9 %
• Signal-to-noise ratio: ≥ 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
• Input impedance: 40 kΩ
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF frequency response: 80 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ≤ ±15 ppm
• Dimensions: Approx. Ø 50 x 265 mm
• Weight: (incl. batteries) approx. 450 g

MMD 835-1:

• Sound pressure level (SPL): 154 dB SPL
• Transducer principle: dynamic
• Pick-up pattern: cardioid
• Sensitivity: 2.1 mV/Pa
