Sennheiser XSW 1-CI1 B-Band

Radiomicrofono Wireless Per Chitarra, Basso E Strumenti

‎Amplifica i tuoi brani. Scegli XS WIRLESS 1 e affidati a una solida trasmissione wireless con un massimo di 10 canali compatibili in una banda UHF stabile. XS WIRELESS 1 INSTRUMENT SET è un sistema wireless all-inone facile da usare per chitarristi e bassisti, eccellente per il suono dal vivo. Il set include un ricevitore fisso intuitivo per una configurazione rapida e una gestione senza problemi, oltre a un trasmettitore bodypack compatto e un robusto cavo per strumenti.‎

Specifiche Tecniche

• THD, total harmonic distortion: ≤ 0.9%
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Operating time: approx. 10 hrs
• Modulation: Wideband FM
• Power supply: Receiver: 12 V DC nom. / 300 mA - Transmitter: 2 AA size batteries, 1.5 V
• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: Rugged ABS housing
• Frequency: 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range: B: 614-638 MHz -
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• SPL for peak deviation: 130 dB
• Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• AF frequency response Receiver: 50 to 16,000 Hz (–3 dB)
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas
• Dimensions Receiver: approx. 200 x 42 x 127 mm
• Bodypack transmitter: approx. 71 x 96 x 28 mm
• Weight: approx. 340g (receiver), approx. 95g (transmitter)

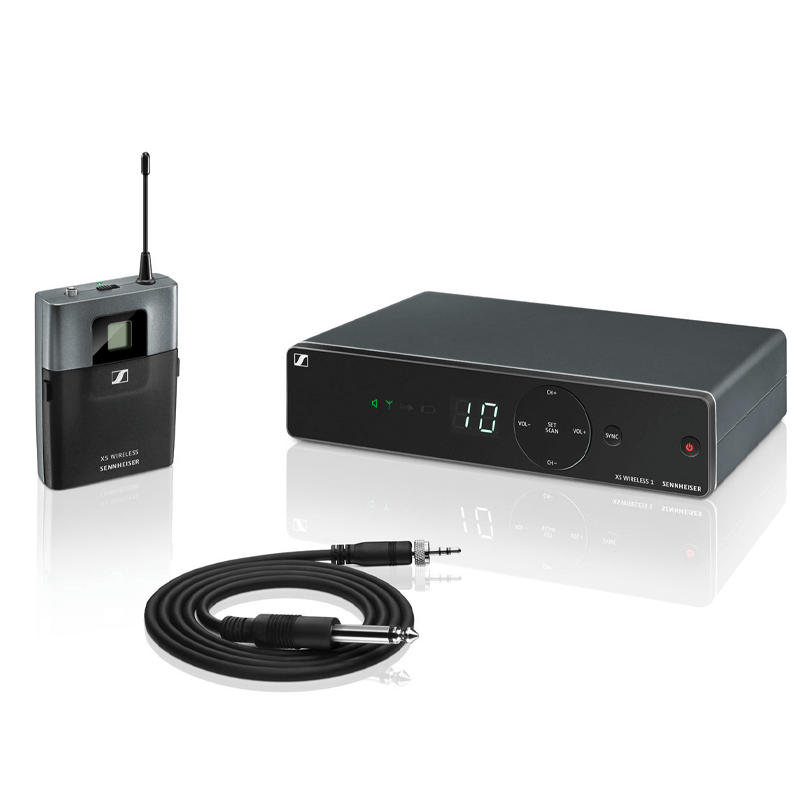

• Included: 1 receiver EM-XSW 1 - 1 bodypack transmitter SK-XSW - 1 instrument cable Cl1 - 1 power supply NT 12-5 CW - 2 AA batteries
