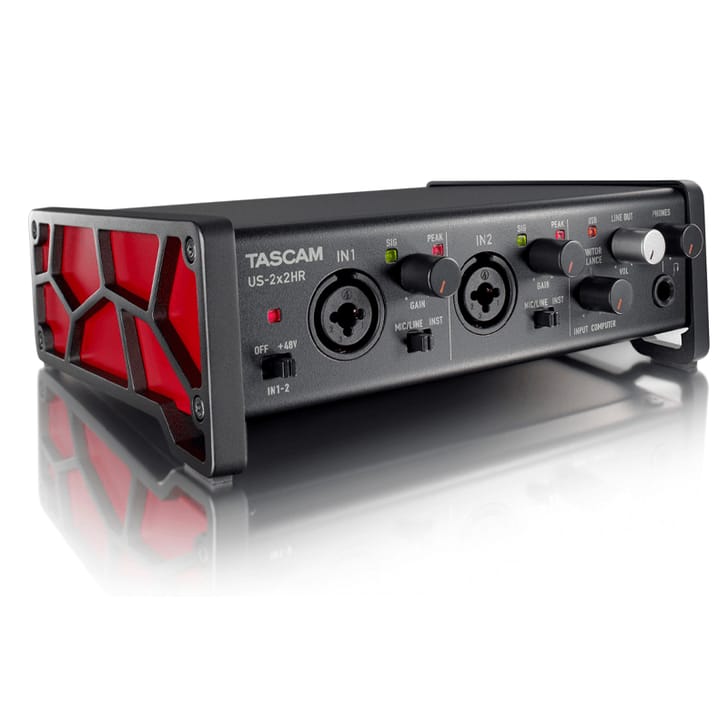

Tascam Us-2X2 HR

Scheda Audio

‎2 ingressi combo jack microfono/linea con ingresso chitarra supportano l'interfaccia audio con porte MIDI IN/OUT implementate. La funzione loopback dotata e il supporto OBS rendono questa interfaccia applicabile per podcast e live streaming. Il nuovo US-2x2HR offre un funzionamento semplice e intuitivo, oltre a un aspetto sofisticato, un ricco assortimento di pacchetti software e prestazioni audio migliorate con supporto a 192 kHz, grazie al circuito audio recentemente migliorato.‎

Specifiche Tecniche

• Sampling frequency: 44.1k/48k/88.2k/96k/176.4k/192k Hz
• Quantization bit rate: 24bit
• Analog audio inputs: MIC IN IN 1 / IN 2 Connector, XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED Input impedance 2.2k ohms, Maximum input level (GAIN:MIN) +9dBu (2.183Vrms), Gain 56dB
• Inst IN: IN 1 / IN 2, Connector 6.3mm(1/4")TS-jack(T:HOT, S:GND), UNBALANCED (When set to "INST" at MIC/LINE INST switch), Input impedance 1M ohms or more, Maximum input level (GAIN:MIN) +10dBV(3.162Vrms), Gain 56dB
• Line In: IN 1 / IN 2, Connector 6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED (When set to "MIC/LINE" at MIC/LINE INST switch), Input impedance 10k ohms, Maximum input level (GAIN:MIN) +20dBu(7.746Vrms), Gain 56dB
• Analog audio outputs: LINE OUT 1-2, Connector 6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED, Output impedance 210 ohms, Nominal output level +4dBu (1.228Vrms), Maximum output level +20dBu (7.746Vrms)
• Phones Connector: 6.3mm(1/4") stereo phone jack, Maximum output level 18mW+18mW or more (THD+N 0.1% or less, 32ohms loaded), Output impedance 66ohms, Working impedance 16ohms to 250ohms
• Midi IN /OUT : Connector Din 5-pin, Format Standard MIDI format
• USB: Connector USB Type-C, Format USB2.0 HIGH SPEED (480Mbps)
• Power: When connected PC USB bus powered, AC Adapter (TASCAM PS-P520E, sold separately), When connected iOS/iPadOS AC Adapter (TASCAM PS-P520E, sold separately)
• Power consumption: 1.75W
• Dimensions: 186(W) × 65(H) × 160(D)mm (including protrusions)
• Weight: 1.1kg
• Operating temperature: 5 to 35°C
• Accessories: USB cable (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner's Manual (including warranty)
• Mic amp EIN (equivalent input noise): -128dBu or lower
• Frequency response Mic / Line IN: 44.1k/48k Hz 20Hz to 20kHz, +0dB/-0.4dB(JEITA), 88.2k/96k Hz 20Hz to 40kHz, +0dB/-0.4dB(JEITA)
• Frequency response Line OUT: 44.1k/48k Hz 20Hz to 40kHz, +0.2dB/-0.1dB(JEITA), 88.2k/96k Hz 20Hz to 40kHz, +0.2dB/-0.4dB(JEITA)
• THD + N: 0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF), 0.0011% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF), 0.0012% (LINE OUT, 1kHz sine wave, -4dBFS input, MONITOR knob at maximum, 20kHz SPCL LPF)
• S/N ratio: 110dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight), 108dB (LINE IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)), 110dB (LINE OUT, MONITOR knob at maximum, 20kHz SPCL LPF+A-Weight)
• Crosstalk: 95dB or more (MIC/LINE IN to LINE OUT, 1kHz sine wave, GAIN knob at minimum)
• O.S. Windows: Compatible computers Windows computer with a USB 2.0 (or higher) port, CPU type/speed 2GHz or faster dual core processor (x86), Memory 2GB or more, Driver ASIO ASIO2.0, WDM, MIDI
• O.S. Mac: Compatible computers Mac with a USB 2.0 (or higher) port, CPU type/speed 2GHz or faster dual core processor, Memory 2GB or more, Driver Core Audio, Core MIDI
• iOS/iPadOS divice: Driver Core Audio
